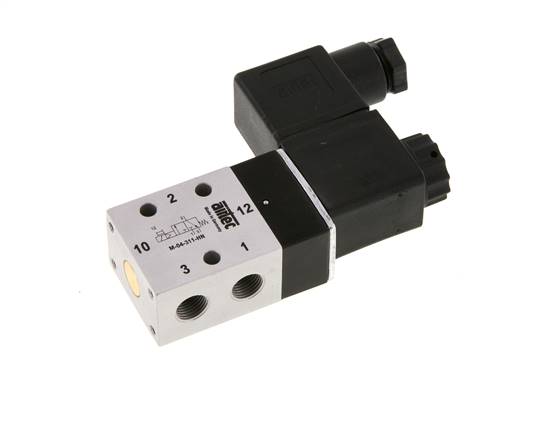

3/2-way solenoid valve, G 1/8", closed (NC), 24 V AC, Standard
{{ $t('shop.all.artikelnummer') }}:
M 04311HN 24VAC
{{ $t('shop.all.menge') }}
{{ $t('shop.display.artikel.hinweis_alternative') }}
{{ $t('shop.display.artikel.beschreibung_headline') }}
Materials:
Body: anodized aluminium and plastic, internal parts: stainless steel and brass, seal: plastic / NBR
Temperature range:
-10 to +70 °C
Media:
oiled and unoiled filtered compressed air
Control voltages:
Standard: 24 V DC, 230 V AC, upon request other voltages
Voltage tolerance:
± 10 %
Protection class:
IP 65
Information:
These valves are always supplied with a solenoid coil and a connector plug.
Structural shape solenoid coil:
N (plug size 1)
Pressure input:
Connection 1
Body: anodized aluminium and plastic, internal parts: stainless steel and brass, seal: plastic / NBR
Temperature range:
-10 to +70 °C
Media:
oiled and unoiled filtered compressed air
Control voltages:
Standard: 24 V DC, 230 V AC, upon request other voltages
Voltage tolerance:
± 10 %
Protection class:
IP 65
Information:
These valves are always supplied with a solenoid coil and a connector plug.
Structural shape solenoid coil:
N (plug size 1)
Pressure input:
Connection 1
{{ $t('shop.display.artikel.eigenschaften_headline') }}
| Version | Standard |
| Control voltage | 24 V AC |
| function | closed (NC) |
| Thread (2x) | G 1/8" |
| Thread exhaust air (1x) | G 1/8" |
| Nominal width [mm] | 4 |
| flow [l/min] | 360 |
| Operating pressure [bar] | 2,5 - 10 |
| Power consumption (AC) [VA] | 4 |
| Spare solenoid coil | MAG N 24VAC |
{{ $t('shop.display.artikel.info') }} M04311HN24VAC
| {{ $t('shop.all.gewicht') }} | 170 g / pcs |
| {{ $t('shop.all.gtin') }} | 4050571470203 |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 84812090 |
| {{ $t('shop.display.artikel.rohskonform') }} | {{ $t('shop.all.ja') }} |
| {{ $t('shop.all.hersteller') }} | Airtec (WEEE DE94696834 ) |
{{ $t('shop.all.dokumente') }}
- {{ $t('shop.display.datenblatt.titel') }} ({{ $t('shop.all.englisch') }}) (Print view)
Catalogue page Atlas 9 (Page 750a) atlas9_seiten/750a.pdf
3D CAD file (volume model) protected/cad/3d/70001/m04311hn24vac#251114.stp
3D CAD file (volume model) protected/cad/3d/70001/m04311hn24vac#251114.stp
