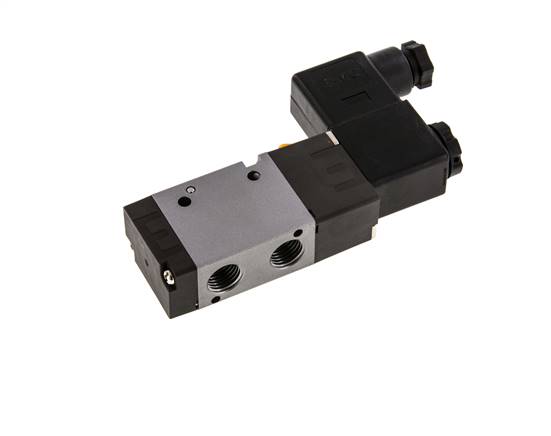

3/2-way solenoid valve, G 1/4", open (NO), 12 V DC

Materials:
Body and slider: aluminium, seals: NBR, pilot: polyamide

Temperature range:
-5 to +60 °C

Operating pressure:
1,5 to 8 bar

Media:
oiled and unoiled filtered compressed air

Switching time (at 5 bar):
<50 ms, max. 5 switching cycles/sec (5/3-way: max. 3 switching cycles/sec)

Control voltages:
Standard: 24 V DC, 230 V AC, upon request other voltages

Voltage tolerance:
± 10 %

Protection class:
IP 65

Service life:
min. 40 million switching cycles

Structural shape solenoid coil:
T1 (plug size 1)

Information:
The coil and plug are enclosed as loose parts.

Control voltage	12 V DC
function	open (NO)*
Thread G1 (2x)	G 1/4"
Thread exhaust air G1 (1x)	G 1/4"
Nominal width [mm]	4,5
flow [l/min]	800
Power consumption (DC) [W]	3
Spare solenoid coil	MAG T1 12V=
A [mm]	112,7
B [mm]	35
C [mm]	22
D [mm]	8,2
E [mm]	18,5
F [mm]	25
H1 [mm]	4,2
H2 [mm]	3,3
J [mm]	17
K [mm]	16,0
L [mm]	30
M [mm]	19,8
N [mm]	22,5
O [mm]	32,0
P [mm]	-1,5
U [mm]	67,5
V [mm]	40,5
W [mm]	0

{{ $t('shop.all.gewicht') }}	220 g / pcs
{{ $t('shop.all.gtin') }}	4050571714840
{{ $t('shop.display.artikel.zollwarennummer') }}	84812090
{{ $t('shop.all.hersteller') }}	EMC
