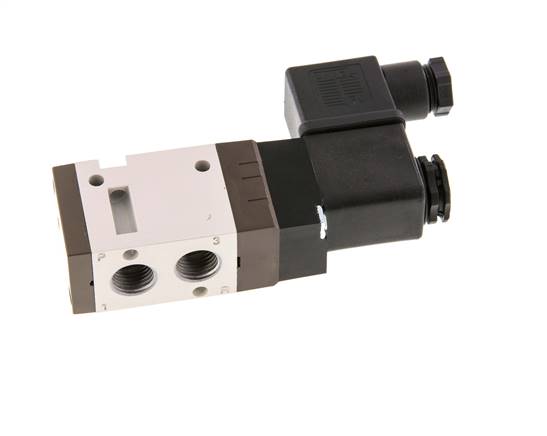

3/2-way solenoid valve, G 1/4", closed (NC), 24 V DC
{{ $t('shop.all.artikelnummer') }}:
SF4601 IPSC-D4
{{ $t('shop.all.menge') }}
{{ $t('shop.display.artikel.hinweis_alternative') }}
{{ $t('shop.display.artikel.beschreibung_headline') }}
Materials:
Body and slider: aluminium, seals: NBR, pilot: polyamide (glass fibre reinforced)
Temperature range:
-10 to +60 °C
Media:
oiled and unoiled filtered compressed air
Control voltages:
Standard: 24 V DC, 230 V AC, upon request other voltages
Voltage tolerance:
± 10 %
Information:
These valves are always supplied with a solenoid coil and a connector plug.
Switching time (at 5 bar):
< 25 ms
Protection class:
IP 65
Structural shape solenoid coil:
M (plug size 1)
Body and slider: aluminium, seals: NBR, pilot: polyamide (glass fibre reinforced)
Temperature range:
-10 to +60 °C
Media:
oiled and unoiled filtered compressed air
Control voltages:
Standard: 24 V DC, 230 V AC, upon request other voltages
Voltage tolerance:
± 10 %
Information:
These valves are always supplied with a solenoid coil and a connector plug.
Switching time (at 5 bar):
< 25 ms
Protection class:
IP 65
Structural shape solenoid coil:
M (plug size 1)
{{ $t('shop.display.artikel.eigenschaften_headline') }}
| Control voltage | 24 V DC |
| function | closed (NC) |
| Thread (2x) | G 1/4" |
| Thread exhaust air (1x) | G 1/4" |
| Operating pressure [bar] | 1,5 - 10 |
| flow [l/min] | 980 |
| Power consumption (DC) [W] | 2,1 |
| Spare solenoid coil | MAG M 24V= |
{{ $t('shop.display.artikel.info') }} SF4601IPSC-D4
| {{ $t('shop.all.gewicht') }} | 220 g / pcs |
| {{ $t('shop.all.gtin') }} | 4050571622978 |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 84812090 |
| {{ $t('shop.display.artikel.rohskonform') }} | {{ $t('shop.all.ja') }} |
| {{ $t('shop.all.hersteller') }} | YPC |
{{ $t('shop.all.dokumente') }}
- {{ $t('shop.display.datenblatt.titel') }} ({{ $t('shop.all.englisch') }}) (Print view)
Catalogue page Atlas 9 (Page 731) atlas9_seiten/731.pdf
3D CAD file (volume model) protected/cad/3d/72028/sf4601ipsc-d4#27526.stp
3D CAD file (volume model) protected/cad/3d/72028/sf4601ipsc-d4#27526.stp
