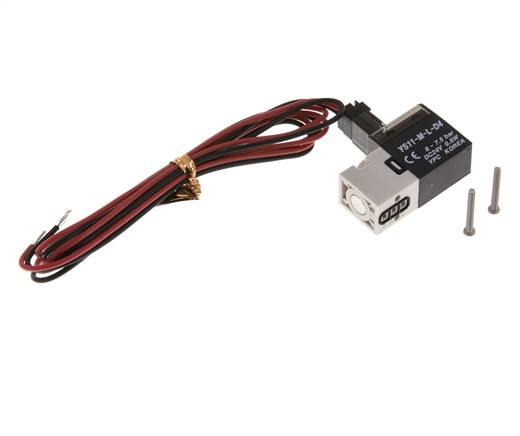

3/2-way solenoid valve, flange (5,6 x 6,8), open (NO), 24 V DC
{{ $t('shop.all.artikelnummer') }}:
YS11 ML-D4
{{ $t('shop.all.menge') }}
{{ $t('shop.display.artikel.hinweis_alternative') }}
{{ $t('shop.display.artikel.beschreibung_headline') }}
Materials:
Body: plastic, seals: NBR
Temperature range:
-10 to +60 °C
Media:
oiled and unoiled filtered compressed air
Switching time (at 5 bar):
< 5 ms
Nominal width:
0,7 mm
Control voltages:
24 V DC
Voltage tolerance:
± 10 %
Power consumption:
0,8 W
Protection class:
IP 40
Scope of delivery:
with rectangular plug SY100, with LED (including 600 mm cable), screws and seals
Note:
Connections P (1) and R (3) are exchanged with NO type
Body: plastic, seals: NBR
Temperature range:
-10 to +60 °C
Media:
oiled and unoiled filtered compressed air
Switching time (at 5 bar):
< 5 ms
Nominal width:
0,7 mm
Control voltages:
24 V DC
Voltage tolerance:
± 10 %
Power consumption:
0,8 W
Protection class:
IP 40
Scope of delivery:
with rectangular plug SY100, with LED (including 600 mm cable), screws and seals
Note:
Connections P (1) and R (3) are exchanged with NO type
{{ $t('shop.display.artikel.eigenschaften_headline') }}
| Control voltage | 24 V DC |
| function | open (NO) |
| Connection | flange (5,6 x 6,8) |
| Operating pressure [bar] | 0 - 7,5 |
| flow [l/min] | 23 |
{{ $t('shop.display.artikel.info') }} YS11ML-D4
| {{ $t('shop.all.gewicht') }} | 17 g / pcs |
| {{ $t('shop.all.gtin') }} | 4050571808259 |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 84812090 |
| {{ $t('shop.display.artikel.rohskonform') }} | {{ $t('shop.all.ja') }} |
| {{ $t('shop.all.hersteller') }} | YPC |
