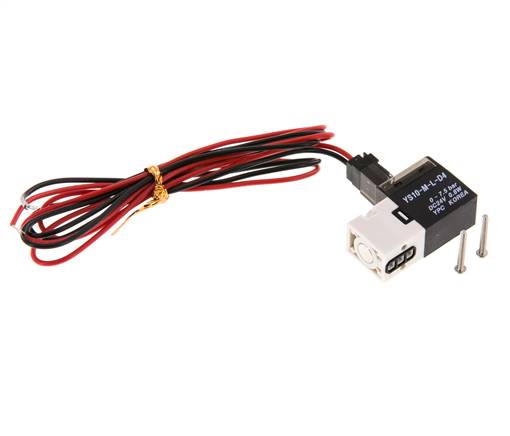

3/2-way solenoid valve, flange (5,6 x 6,8), closed (NC), 24 V DC
Item number:
YS10 ML-D4
Item description
Materials:
Body: plastic, seals: NBR
Temperature range:
-10 to +60 °C
Media:
oiled and unoiled filtered compressed air
Switching time (at 5 bar):
< 5 ms
Nominal width:
0,7 mm
Control voltages:
24 V DC
Voltage tolerance:
± 10 %
Power consumption:
0,8 W
Protection class:
IP 40
Scope of delivery:
with rectangular plug SY100, with LED (including 600 mm cable), screws and seals
Note:
Connections P (1) and R (3) are exchanged with NO type
Body: plastic, seals: NBR
Temperature range:
-10 to +60 °C
Media:
oiled and unoiled filtered compressed air
Switching time (at 5 bar):
< 5 ms
Nominal width:
0,7 mm
Control voltages:
24 V DC
Voltage tolerance:
± 10 %
Power consumption:
0,8 W
Protection class:
IP 40
Scope of delivery:
with rectangular plug SY100, with LED (including 600 mm cable), screws and seals
Note:
Connections P (1) and R (3) are exchanged with NO type
Properties
| Control voltage | 24 V DC |
| function | closed (NC) |
| Connection | flange (5,6 x 6,8) |
| Operating pressure [bar] | 0 - 7,5 |
| flow [l/min] | 23 |
Further information on YS10ML-D4
| Weight | 17 g / pcs |
| GTIN | 4050571808242 |
| Customs duty number | 84812090 |
| RoHS compliant | Yes |
| Manufacturer | YPC |
Documents
- Catalogue page Atlas 9 (Page 728) (PDF)
- 3D CAD file (volume model) (Only for customers that are logged in) (STP)
- Data sheet (Print view)
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
