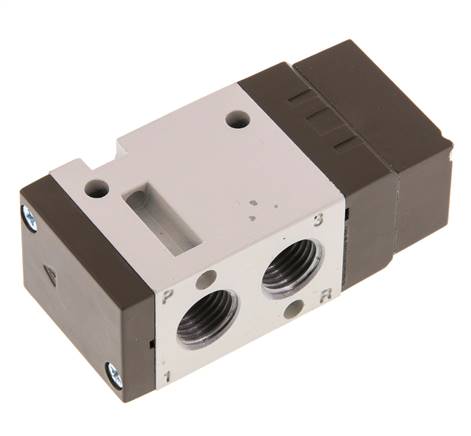

Item description
Materials:
Body and slider: aluminium, seals: NBR, pilot: polyamide (glass fibre reinforced)
Temperature range:
-10 to +60 °C
Control pressure:
2 to 8 bar
Media:
oiled and unoiled filtered compressed air
Body and slider: aluminium, seals: NBR, pilot: polyamide (glass fibre reinforced)
Temperature range:
-10 to +60 °C
Control pressure:
2 to 8 bar
Media:
oiled and unoiled filtered compressed air
Properties
| function | open (NO) |
| Thread (2x) | G 1/4" |
| Thread exhaust air (1x) | G 1/4" |
| Thread control connection (1x) | G 1/8" |
| Operating pressure [bar] | 1,5 - 10 |
| flow [l/min] | 980 |
Further information on SFP4701
| Weight | 145 g / pcs |
| GTIN | 4050571624712 |
| Customs duty number | 84812090 |
| RoHS compliant | Yes |
| Manufacturer | YPC |
Documents
- Catalogue page Atlas 9 (Page 740) (PDF)
- 3D CAD file (volume model) (Only for customers that are logged in) (STP)
- Data sheet (Print view)
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
