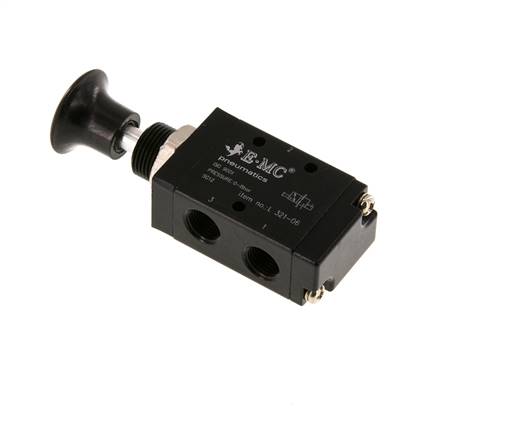

3/2-way axial hand lever valve, Detend, G 1/8"
{{ $t('shop.all.artikelnummer') }}:
L 321-06
{{ $t('shop.all.menge') }}
{{ $t('shop.display.artikel.hinweis_alternative') }}
{{ $t('shop.display.artikel.beschreibung_headline') }}
Materials:
Body and slider: aluminium, seals: NBR
Temperature range:
-5 to +60 °C
Operating pressure:
0 to 8 bar
Media:
oiled and unoiled filtered compressed air
Pressure input:
Possible on every connection
Body and slider: aluminium, seals: NBR
Temperature range:
-5 to +60 °C
Operating pressure:
0 to 8 bar
Media:
oiled and unoiled filtered compressed air
Pressure input:
Possible on every connection
{{ $t('shop.display.artikel.eigenschaften_headline') }}
| function | Detend |
| Thread G1 (2x) | G 1/8" |
| Thread exhaust air G1 (1x) | G 1/8" |
| Nominal width [mm] | 3,9 |
| flow [l/min] | 500 |
| A [mm] | 44,7 |
| B [mm] | 27 |
| C [mm] | 18 |
| D [mm] | 23,7 |
| E [mm] | 16,7 |
| F [mm] | 14 |
| H [mm] | 3,1 |
| J [mm] | 19 |
| K [mm] | 85 |
| M [mm] | 14,7 |
| N [mm] | 16,0 |
| O [mm] | 23,7 |
| P [mm] | 1,0 |
| U | M 14x1 |
| V [mm] | 3 |
| W [mm] | 2 |
| X [mm] | 8 |
{{ $t('shop.display.artikel.info') }} L321-06
| {{ $t('shop.all.gewicht') }} | 70 g / pcs |
| {{ $t('shop.all.gtin') }} | 4050571459826 |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 84812090 |
| {{ $t('shop.display.artikel.rohskonform') }} | {{ $t('shop.all.ja') }} |
| {{ $t('shop.all.hersteller') }} | EMC |
{{ $t('shop.all.dokumente') }}
- {{ $t('shop.display.datenblatt.titel') }} ({{ $t('shop.all.englisch') }}) (Print view)
Catalogue page Atlas 9 (Page 727) atlas9_seiten/727.pdf
3D CAD file (volume model) protected/cad/3d/73566/l321-06313548.stp
3D CAD file (volume model) protected/cad/3d/73566/l321-06313548.stp
{{ $t('shop.all.unverbindliche_richtwerte') }}
