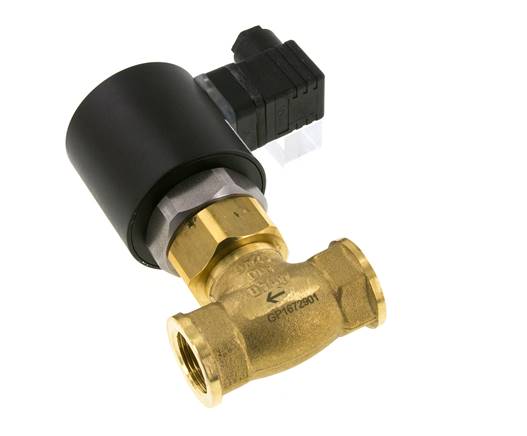

2/2-way vacuum valve (NC), G 3/4", -0,9 to 1bar, 230 V AC
{{ $t('shop.all.artikelnummer') }}:
M 234 VU 230V
{{ $t('shop.all.menge') }}
{{ $t('shop.display.artikel.hinweis_alternative') }}
{{ $t('shop.display.artikel.beschreibung_headline') }}
Materials:
Body: brass, internal parts: 1.4104, seal: NBR (G 1/4": FKM)
Temperature range:
-10 to +80 °C, environment: max. +35 °C
Media:
neutral, gaseous and liquid media, vacuum (max. -0.9 bar)
Installation position:
with upright magnets (G 1/4": any)
Control voltages:
24 V DC, 230 V AC
Voltage tolerance:
± 10 %
Protection class:
IP 65 (plug size 3, G 1": Screw terminals)
Pressure input:
P
Vacuum inlet:
A
Information:
These valves are always supplied with a solenoid coil and a connector plug.
Body: brass, internal parts: 1.4104, seal: NBR (G 1/4": FKM)
Temperature range:
-10 to +80 °C, environment: max. +35 °C
Media:
neutral, gaseous and liquid media, vacuum (max. -0.9 bar)
Installation position:
with upright magnets (G 1/4": any)
Control voltages:
24 V DC, 230 V AC
Voltage tolerance:
± 10 %
Protection class:
IP 65 (plug size 3, G 1": Screw terminals)
Pressure input:
P
Vacuum inlet:
A
Information:
These valves are always supplied with a solenoid coil and a connector plug.
{{ $t('shop.display.artikel.eigenschaften_headline') }}
| Control voltage | 230 V AC |
| function | closed (NC) without power |
| Thread | G 3/4" |
| Operating pressure [bar] | -0.9 to 1 |
| DN [mm] | 18 |
| Suction performance [m³/h] | 90 |
| Suction performance [l/min] | 1500 |
| Kv value* [l/min] | 81,7 |
| L [mm] | 75 |
| Power consumption (AC) [VA] | 34 |
| Structural shape solenoid coil | F |
| Spare solenoid coil | MAG F 230V |
{{ $t('shop.display.artikel.info') }} M234VU230V
| {{ $t('shop.all.gewicht') }} | 2 kg / pcs |
| {{ $t('shop.all.gtin') }} | 4050571476892 |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 84812090 |
{{ $t('shop.all.dokumente') }}
- {{ $t('shop.display.datenblatt.titel') }} ({{ $t('shop.all.englisch') }}) (Print view)
Catalogue page Atlas 9 (Page 717) atlas9_seiten/717.pdf
Documentation doku/m_vu.pdf
Documentation doku/m_vu.pdf
