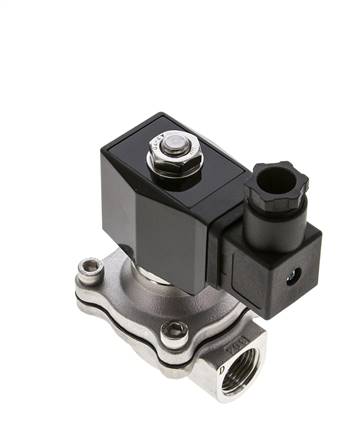

2/2-way SS solenoid valve G 1/2", 0-6/10 (DC/AC) bar, NC
{{ $t('shop.all.artikelnummer') }}:
ZS 12 ES 12V=
{{ $t('shop.all.menge') }}
{{ $t('shop.display.artikel.hinweis_alternative') }}
{{ $t('shop.display.artikel.beschreibung_headline') }}
Materials:
Bodies: 1.4306, internal parts: stainless steel, seal: FKM
Temperature range:
-20 to +120 °C, environment: max. +65 °C
Media:
Compressed air, neutral gases, water, neutral low-viscosity media, other media on request
Installation position:
With upright magnets
Control voltages:
Standard: 24 V DC, 230 V AC, upon request other voltages
Voltage tolerance:
± 10 %
Protection class:
IP 65 (plug size 3)
Information:
These valves are always supplied with a solenoid coil and a connector plug.
Bodies: 1.4306, internal parts: stainless steel, seal: FKM
Temperature range:
-20 to +120 °C, environment: max. +65 °C
Media:
Compressed air, neutral gases, water, neutral low-viscosity media, other media on request
Installation position:
With upright magnets
Control voltages:
Standard: 24 V DC, 230 V AC, upon request other voltages
Voltage tolerance:
± 10 %
Protection class:
IP 65 (plug size 3)
Information:
These valves are always supplied with a solenoid coil and a connector plug.
{{ $t('shop.display.artikel.eigenschaften_headline') }}
| Version | 2/2-way solenoid valve |
| Control voltage | 12 V DC |
| function | closed (NC) without power |
| Thread | G 1/2" |
| Operating pressure [bar] | 0 - 6 |
| DN [mm] | 16 |
| L [mm] | 69 |
| Kv value* [l/min] | 68 |
| Power consumption (DC) [W] | 25 |
| Structural shape solenoid coil | Q |
| Spare solenoid coil | MAG Q 12V= |
| Spare membrane (sealing kit**) NBR | ZS 381234 MEM N |
| Spare membrane (sealing kit**) FKM | ZS 381234 MEM V |
| Spare membrane (sealing kit**) EPDM | ZS 381234 MEM EP |
{{ $t('shop.display.artikel.info') }} ZS12ES12V=
| {{ $t('shop.all.gewicht') }} | 1.000 g / pcs |
| {{ $t('shop.all.gtin') }} | 4050571816520 |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 84812090 |
| {{ $t('shop.display.artikel.rohskonform') }} | {{ $t('shop.all.ja') }} |
| {{ $t('shop.all.hersteller') }} | EMC |
{{ $t('shop.all.dokumente') }}
- {{ $t('shop.display.datenblatt.titel') }} ({{ $t('shop.all.englisch') }}) (Print view)
Catalogue page Atlas 9 (Page 715) atlas9_seiten/715.pdf
Documentation doku/zses.pdf
3D CAD file (volume model) protected/cad/3d/73566/zs12es12v313874.stp
Documentation doku/zses.pdf
3D CAD file (volume model) protected/cad/3d/73566/zs12es12v313874.stp
