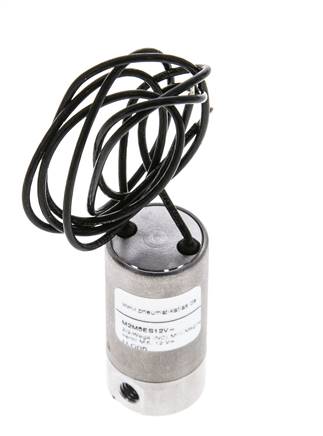

2/2-way solenoid valve (Mini), M 5, 12 V DC
{{ $t('shop.all.artikelnummer') }}:
M 2M5 ES 12V=
{{ $t('shop.all.menge') }}
{{ $t('shop.display.artikel.hinweis_alternative') }}
{{ $t('shop.display.artikel.beschreibung_headline') }}
Materials:
Body: 1.4104, spring: 1.4310, seal: FKM
Temperature range:
0 to +60 °C
Operating pressure:
-0,9 to 7 bar
Flow:
30 l/min
Media:
oiled and unlubricated, filtered compressed air, non-explosive neutral gases, vacuum
Installation position:
arbitrary
Control voltages:
24 V DC, 12 V DC
Voltage tolerance:
± 10 %
Protection class:
IP 40
Scope of delivery:
This valve is supplied with a 300 mm long cable (Flat pins for circuit-board assembly are also available if requested).
Note:
Connection 1 is marked by a notch on the underside of the valve.
Body: 1.4104, spring: 1.4310, seal: FKM
Temperature range:
0 to +60 °C
Operating pressure:
-0,9 to 7 bar
Flow:
30 l/min
Media:
oiled and unlubricated, filtered compressed air, non-explosive neutral gases, vacuum
Installation position:
arbitrary
Control voltages:
24 V DC, 12 V DC
Voltage tolerance:
± 10 %
Protection class:
IP 40
Scope of delivery:
This valve is supplied with a 300 mm long cable (Flat pins for circuit-board assembly are also available if requested).
Note:
Connection 1 is marked by a notch on the underside of the valve.
{{ $t('shop.display.artikel.eigenschaften_headline') }}
| Version | 2/2-way solenoid valve |
| Control voltage | 12 V DC |
| function | closed (NC) without power |
| Thread (2x) | M 5 |
| DN [mm] | 0,75 |
| Power consumption (DC) [W] | 1,5 |
{{ $t('shop.display.artikel.info') }} M2M5ES12V=
| {{ $t('shop.all.gewicht') }} | 70 g / pcs |
| {{ $t('shop.all.gtin') }} | 4050571477509 |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 84812090 |
{{ $t('shop.all.dokumente') }}
- {{ $t('shop.display.datenblatt.titel') }} ({{ $t('shop.all.englisch') }}) (Print view)
Catalogue page Atlas 9 (Page 716) atlas9_seiten/716.pdf
3D CAD file (volume model) protected/cad/3d/70021/m2m5es12v#36382.stp
