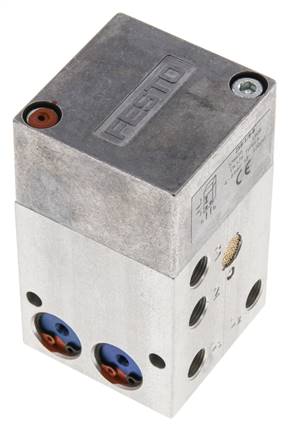

ZSB-1/8-B (576656) control block for two
{{ $t('shop.all.artikelnummer') }}:
OT-FESTO013816
{{ $t('shop.display.artikel.eigenschaften_headline') }}
| Nominal width [mm] | 4 |
| Actuation type | pneumatic |
| installation position | arbitrary |
| Safety function | Two-handed operation |
| Performance Level (PL) | Two-handed operation/ Cat. 1 PLc |
| Operating pressure [bar] | 4 to 8 |
| Normal nominal flow [l/min] | 50 |
| CE certificate (see declaration of conformity) | to EU machinery directive |
| Certified awarding point | IFA 1201046 |
| Operating medium | Compressed air to ISO 8573-1:2010 [7:4:4] |
| Information about operating and control medium | Oiled operation possible (required in further operations) |
| Shock resistance | Shock test with degree of severity 2 to FN 942017-5 and EN 60068-2-27 |
| Corrosion resistant class KBK | 1 - low corrosion stress |
| ambient temperature [°C] | 0 to 60 |
| Product weight [g] | 420 |
| Fastening type |
With throughway bores, With female thread, Selectively: |
| Pneumatic connection 2 | G1/8 |
| Pneumatic connection 3 | G1/8 |
| Material information | RoHs compliant |
| Cover material | Aluminium die casting |
| Seals material | NBR |
| Housing material |
Aluminium wrought alloy, anodized |
{{ $t('shop.display.artikel.info') }} OT-FESTO013816
| {{ $t('shop.all.gewicht') }} | 420 g / ks |
| {{ $t('shop.all.gtin') }} | 4052568225407 |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 84812090 |
| {{ $t('shop.all.hersteller') }} | Festo |
{{ $t('shop.all.dokumente') }}
- {{ $t('shop.display.datenblatt.titel') }} ({{ $t('shop.all.englisch') }}) (Náhled tisku)
datový list skupiny: ZSB (ceský) festo/gruppendatenblaetter/zsb_cz.pdf
datový list skupiny: ZSB (english) festo/gruppendatenblaetter/zsb_en.pdf
Dokumentace (ceský) festo/datenblaetter/576656_cs.pdf
datový list skupiny: ZSB (english) festo/gruppendatenblaetter/zsb_en.pdf
Dokumentace (ceský) festo/datenblaetter/576656_cs.pdf
