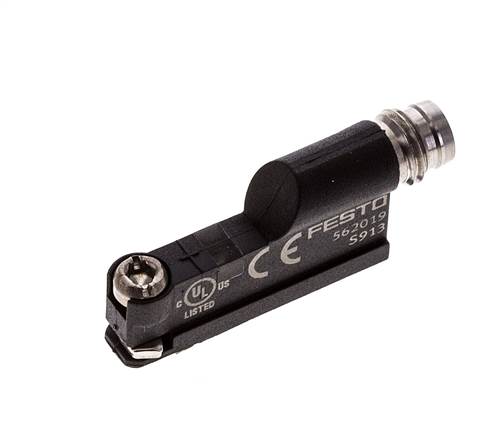

SMT-8-SL-PS-LED-24-B (562019) proximity sensor
{{ $t('shop.all.artikelnummer') }}:
OT-FESTO027895
{{ $t('shop.display.artikel.eigenschaften_headline') }}
| Permission |
RCM mark, c UL us - Listed (OL) |
| CE certificate (see declaration of conformity) | to EU EMC directive |
| Material information |
Copper and PTFE-free, RoHs compliant |
| Measurement principle | Magnetoresistive |
| ambient temperature [°C] | -20 to 70 |
| Control output | PNP |
| Switching element function | NO contact |
| Max. output current [mA] | 100 |
| Max. switching capacity DC [W] | 3,0 |
| Short circuit resistance | yes |
| Overload resistant | Available |
| Operating voltage range DC [V] | 10 to 30 |
| Reverse polarity protection | for all electrical connections |
| Electrical connection 1, connection type | Plug |
| Electrical connection 1, connection technology | M8x1 A coded to EN 61076-2-104 |
| Electrical connection 1, number of pins / wires | 3 |
| Fastening type |
Permanently screwed, Push-in lengthwise into the slot |
| Housing material | PA |
| Protection category |
IP65, IP68 |
| Design | For T-slot |
| Rated operating voltage DC [V] | 24 |
| Product weight [g] | 4,2 |
| Switching status indicator | LED yellow |
{{ $t('shop.display.artikel.info') }} OT-FESTO027895
| {{ $t('shop.all.gewicht') }} | 4,2 g / ks |
| {{ $t('shop.all.gtin') }} | 4052568099053 |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 85365019 |
| {{ $t('shop.all.hersteller') }} | Festo |
{{ $t('shop.all.dokumente') }}
- {{ $t('shop.display.datenblatt.titel') }} ({{ $t('shop.all.englisch') }}) (Náhled tisku)
datový list skupiny: SMX8 (ceský) festo/gruppendatenblaetter/smx8_cz.pdf
Dokumentace (ceský) festo/datenblaetter/562019_cs.pdf
Dokumentace (ceský) festo/datenblaetter/562019_cs.pdf
