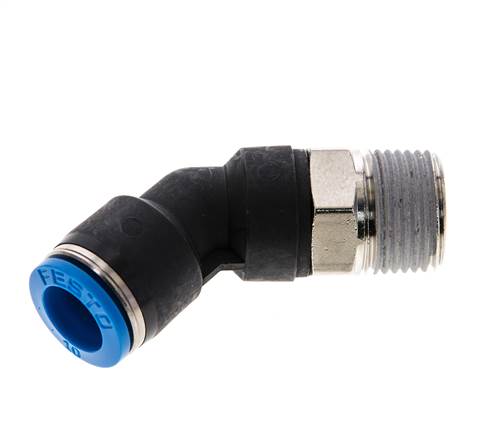

QSW-3/8-10 (130602) push-in fitting

OT-FESTO015729

Príklady vyobrazení: QSW-1/8-6 (130597)   &   QSW-1/8-8 (130598)   &   QSW-1/4-8 (130600)  & ...
8,13€ vč. DPH
ks
{{ $t('shop.display.artikel.hinweis_alternative') }}
{{ $t('shop.display.artikel.eigenschaften_headline') }}
size Standard
Nominal width [mm] 8,3
Seal type on stud coating
installation position arbitrary
Packing size 10
Construction set up Push-pull principle
Operating pressure complete temperature range [bar] -0.95 to 6
Temperature depending operating pressure [bar] -0.95 to 14
Maritime classification see Certificate
Operating medium Compressed air to ISO 8573-1:2010 [7:-:-],
Water according to manufacturer declaration at www.festo.com
Information about operating and control medium Oiled operation possible
Corrosion resistant class KBK 1 - low corrosion stress
ambient temperature [°C] -10 to 80
Product weight [g] 35,0
Pneumatic connection 1 Male thread R3/8
Pneumatic connection 2 For hose exterior diameter 10 mm
Sleeve colour blue
Material information RoHs compliant
Housing material PBT
Sleeve material POM
Tube seal, hose seal material NBR
Hose clamping segment material High-alloyed stainless steels
OT-FESTO015729
{{ $t('shop.all.gewicht') }} 35,0 g / ks
{{ $t('shop.all.gtin') }} 4052568023607
{{ $t('shop.display.artikel.verpackungseinheit') }} 10 ks
{{ $t('shop.display.artikel.zollwarennummer') }} 74122000
{{ $t('shop.all.hersteller') }} Festo
{{ $t('shop.all.dokumente') }}
    Dokumentace (ceský) festo/datenblaetter/130602_cs.pdf
    datový list skupiny: QS (ceský) festo/gruppendatenblaetter/qs_cz.pdf
    datový list skupiny: QS (english) festo/gruppendatenblaetter/qs_en.pdf
    Soubor 3D-CAD (objemový model) protected/cad/3d/70203/ot-festo015729#86286.stp
