CMMO-ST-C5-1-DION (1512317) motor controller

OT-FESTO033629

{{ $t('shop.display.artikel.link_zur_artikelgruppe') }}

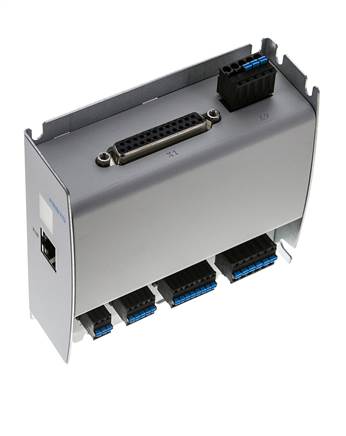

Príklady vyobrazení: CMMO-ST-C5-1-DION
536,46€ vč. DPH
ks
{{ $t('shop.display.artikel.hinweis_alternative') }}
{{ $t('shop.display.artikel.eigenschaften_headline') }}
Fastening type on connection plate,
With Slot rail,
Permanently screwed
Product weight [g] 290
Display Seven segment display
Permission RCM mark,
c UL us - Listed (OL)
KC-mark KC-EMV
CE certificate (see declaration of conformity) to EU EMC directive,
to EU machinery directive
Bearing temperature [°C] -25 to 75
ambient temperature [°C] 0 to 50
UL - ambient temperature [°C] 0 to 40
Relative humidity 0 - 90 %,
Not condensing
Protection category IP40
Material information RoHs compliant
Nominal current load supply [A] 6
Peak current load supply [A] 8
Network filter integrated
Nominal voltage load supply DC [V] 24
Max. intermediate circuit voltage DC [V] 28
Braking resistance [Ohm] 15
Impulse power braking resistance [kVA] 0,1
Nominal voltage logic supply DC [V] 24
Permitted range logic voltage ± 15 %
Nominal current logic supply [A] 0,3
Nominal output current [A] 5,7
Operating mode controller PWN, MOSFET power end level,
P position controller,
Cascade controller with,
PI speed controller,
Proportional and integral controller for current
Adjustable current lowering Via software
Step setting Via software
Protection function I²t monitoring,
Drag error monitoring,
Software endpoint detection,
Voltage blackout detection,
Current monitoring,
Temperature monitoring
Nominal current setting Via software
Parameterising interface Ethernet
Ethernet supported protocols TCP/IP
Process coupling I/O coupling,
for 32 mobile sets
Rotor position transducer Encoder
Position transducer Encoder
Encoder input interface, properties RS422
Quantity digital logic inputs 11
Switching logic inputs NPN (minus-switching)
Properties logic inputs Galvanically connected with logic potential
Logic input specification Depending on IEC 61131-2
Work area logic input [V] 24
Quantity digital logic outputs 24 V DC 11
Switching logic outputs NPN (minus-switching)
Properties digital logic outputs Partially freely configurable,
Not galvanically separated
Max. current digital logic outputs [mA] 100
Safety function Safe switched off torque (STO)
Safety Integrity Level (SIL) Safe switched off torque (STO) / SIL 3
Performance Level (PL) Safe Torque off (STO) / category 3, Performance Level e
OT-FESTO033629
{{ $t('shop.all.gewicht') }} 290 g / ks
{{ $t('shop.all.gtin') }} 4052568238018
{{ $t('shop.display.artikel.zollwarennummer') }} 85044085
{{ $t('shop.all.hersteller') }} Festo
